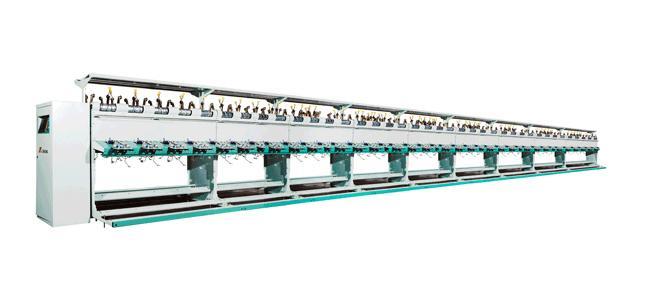

RF231 Assemble Winding Machine

Introduction

The RF231 assemble winding machine can be used for winding 2 to 4 cotton, wool, and blended yarn into a winding bobbin for use in later processes carried out by a twisting machine.

Specification

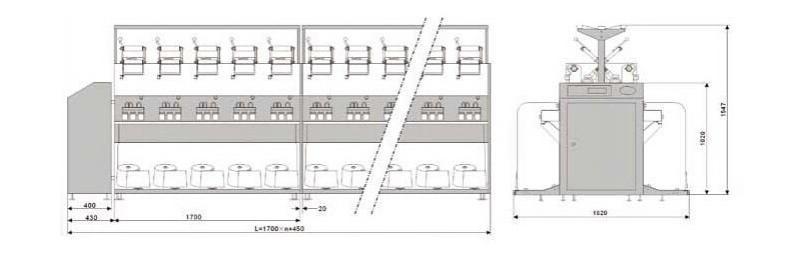

Spindle gauge: 340mm (2~3 yarns), 370mm (2~4 yarns)
Winding spindle diameter: φ130~φ200mm
Winding spindle: 152mm
Number of spindle: 100 for standard, 10 spindles/pitch (twisting yarns: 2-4); 96 spindles for standard, 10 spindles/pitch (twisting yarns: 2-3)
Max winding speed: 630m/min
Installed power: 0.06W/spindle
Operation mode: double side and single layer
Winding method: random winding
Transmission mode: the guide cam is driven by a single spindle motor via gear

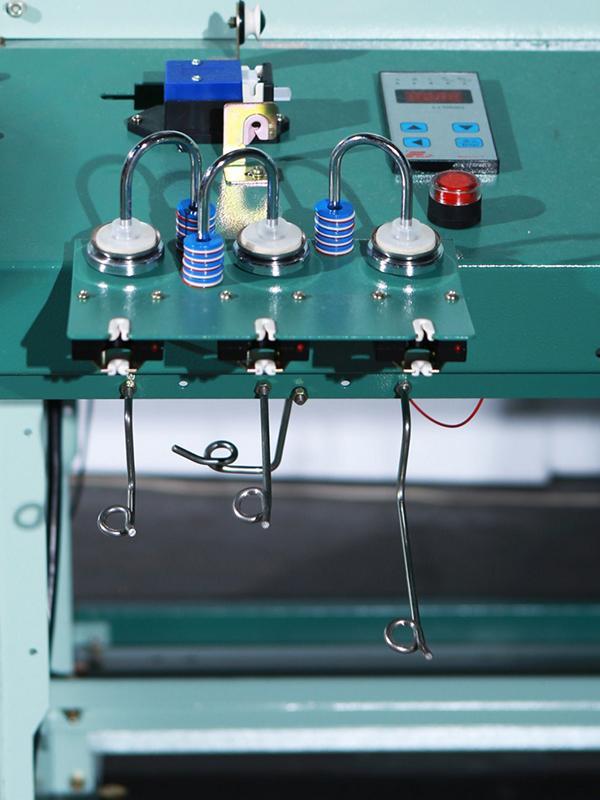

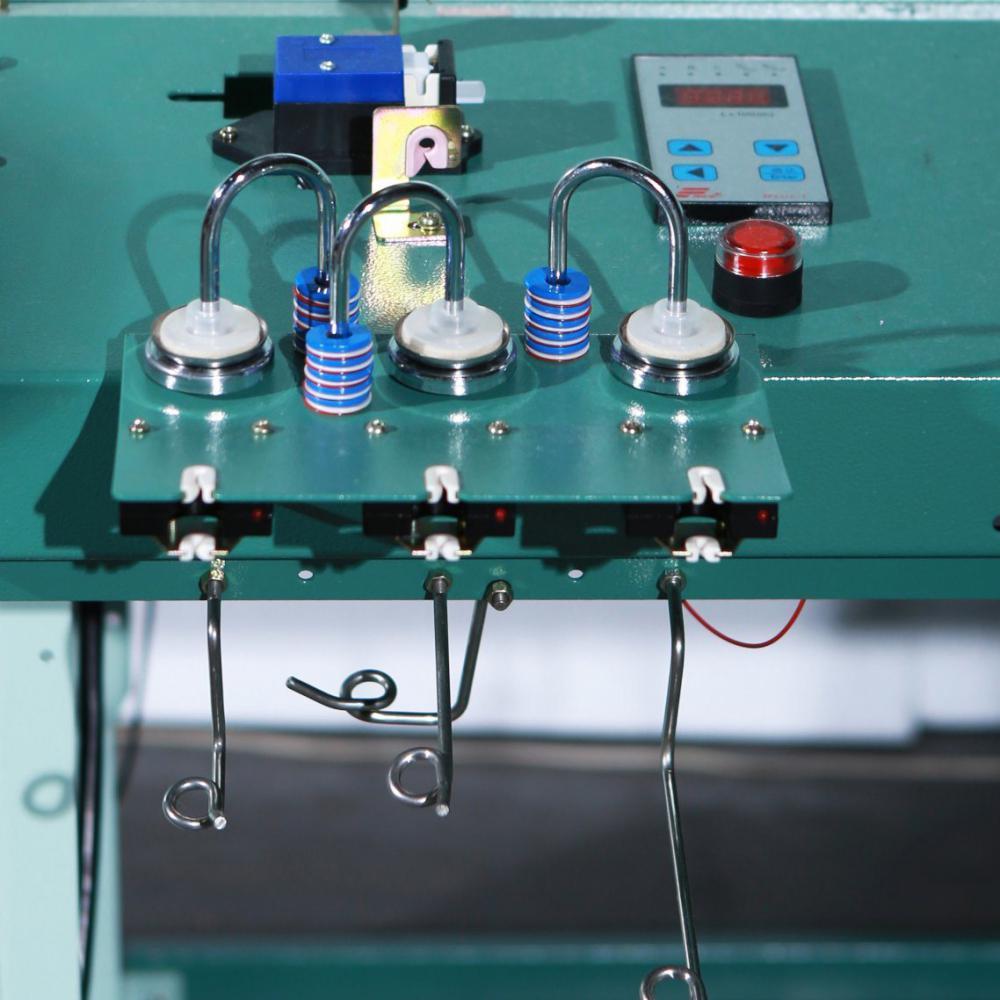

Tension adjustment method: dead load disc pressure type
Breaking yarn monitoring method: auto stop and yarn cutting with infrared ray electronic induction of breaking yarn

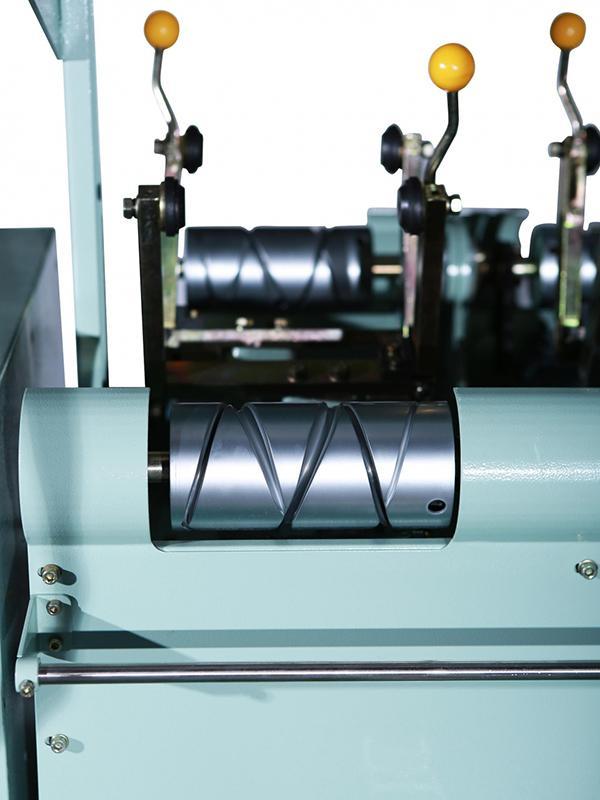

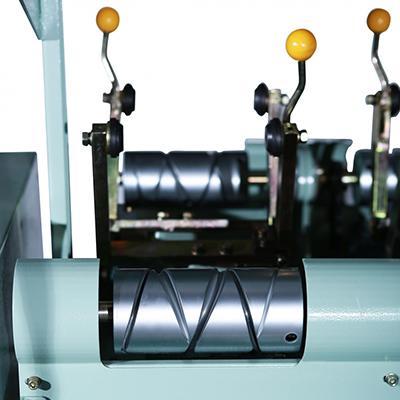

Anti-ribboning method: electronic intermittent and guide cam anti-ribboning

Features
  • The RF231 assemble winding machine features a simple structure, easy operation, and easy installation and adjustment.
  • The operators can set the following functions via the touch screen with the use of a central computer program:
      A. Users can set the yarn production length using the electronic control system
      B. The equipment features an automatic stop after the yarn bobbin is full.
      C. The speed is regulated using a frequency converter.
      D. The winding machine will automatically stop if the yarn breaks.
      E. The fully assembled winding machine can record data.
      F. Users can count the output based on the recorded data.
      G. Optional accessories: balloon separator, air splicer, cleaning device, guide wheel.
