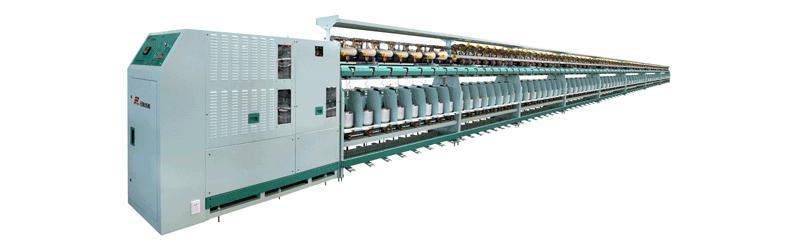

RF321G Two For One Twister For Short Fiber

The RF321G two for one twister for short fiber is used to produce folded yarns by twisting two or more single yarns together, thus improving the yarn performance. This machine is applicable to cotton, polyester, wool, and blended yarn types.

Suitable count: Ne8/2~100/2 multi-yarn cotton yarn, polyester yarn, wool yarn and blended yarn
Spindle gauge: 225mm
Spindle type: φ146, φ166
Spindle number of each pitch: 16
Max pitch number: 12, 10 pitch for standard
Spindle speed: 5000~12000rpm
Winding copper bobbin: 3°30', 4°20', 5°57, length: 170~175mm
Reversing bobbin (inner diameter*outer diameter*length): φ37.5mm×43.5 mm×170 mm
Twist: 112~2217(T/M)
Winding stroke: 152mm
Max winding diameter: φ250mm
Winding angle: 14°45', 16°50', 19°13'
Rated power (KW): 18.5 or 22 or 30
Transmission mode of spindle: belt tangential driving
Direction of twist: S or Z twisting
Bobbin lifting: mechanical
Operation mode: double side and single layer yarn insertion
Tensioner: capsule type
Starting mode: soft start

• The linear velocity of the gear box reaches an efficient speed of 80 m/min.
• Transmission mode improvement reduces the belt, spindle, and bearing loads, thus improving the service life.
• The maximum spindle number is 192.
• The pedal braking system is easy to operate, and does not require the use of operator hands.
• The RF321G twister uses a special roller reversing device that is suitable for both general yarn twisting, as well as spandex yarn twisting.
• The optional balloon limiter allows for a higher spindle speed.
