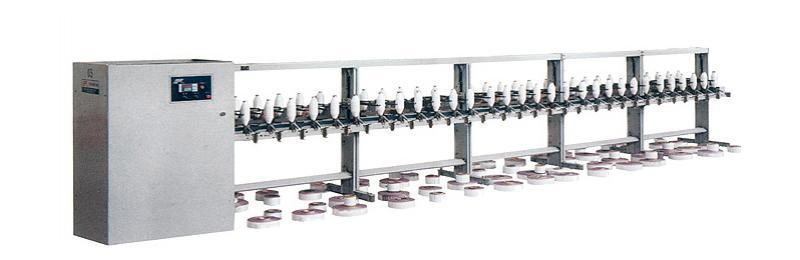

RF303C High Speed Winding Machine

The RF303C high speed winding machine is the front end equipment for filament fiber twisting machines, fancy twister and wrap yarn machine. It is used to process the raw material bobbins of different specifications into a double cone or parallel bobbin, which will then be used in different yarn machines. This equipment can also wind other materials.

Max height of reversing bobbin: 470mm
Max diameter of reversing bobbin: Φ350mm
Winding speed: 300〜7000m/m
Winding length: 240〜320mm
Max winding diameter: Φ 130 mm
Spindle number: 60 spindles (basic type) 12 spindles/pitch
Spindle gauge: 230mm
Lifting speed: 15〜75mm/s
Tensioner: synchronized comb tension
Reversing bobbin: various cylindrical, conical, pineapple type bobbin
Up and down reciprocating motion: general motor (550w) and ball screw straight connection
Winding method: straight shape, infill type
Fixing method of the winding bobbin: clastic clip Winding bobbin shape: straight pipe
Driving method of the spindle: belt circulation driving

• The RF303C high speed winding machine has a simple appearance and is easy to maintain.
• The winding machine features a single board computer integrated control and a simple operating interface to make operation easy.
• The whole machine features a modular design to satisfy different customer requirements, and assembly is easy.
• The motor control and lifting control of the spindles are both accomplished using the frequency converter according to computer instruction. This ensures machine motion is accurate and stable.
