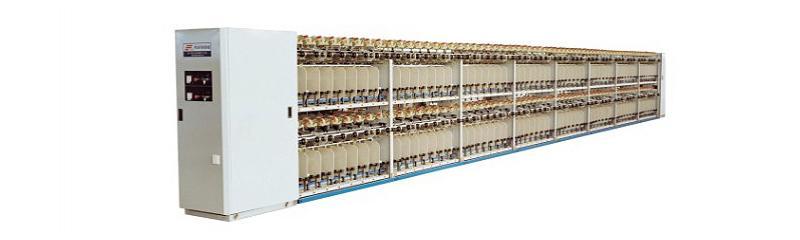

RF310G Two For One Twister For Filament Fibers

The RF310G two for one twister for filament fibers is a filament fiber twisting machine. When the spindle turns, two or more single pieces of yarn are twisted into a folded yarn. This equipment features double the efficiency when compared to a traditional twisting machine, as well as a better winding capacity and a better twisting quality. There are no connections in 10,000 meters.
This machine is suitable for twisting cotton, wool, acrylic, polyester, and blended yarn types.

Standard spindle number: 256
Spindle size for yarn feeding: L240~320X Φ42XΦ110
Winding spindle size: Φ160XΦ89XL65L173
Winding capacity: 1.5kg
Spindle gauge: 225mm
Spindle speed: 4100~ 13500rpm
Twist: 350~398917T/M

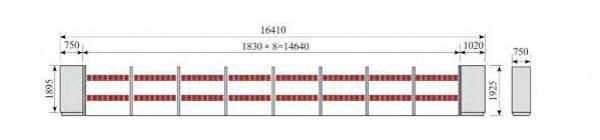

Outline dimensions (L*W*H): 16370*750*1950
Motor power: 7.5kwX2
Guide stroke: 160mm (the electronic guide is adjustable)
Direction of twist: S or Z twisting
Transmission mode of spindle: belt circulation driving
Spindle fixation: magnetic fixation
Starting mode: Y-△ slow speed start
Tensioner: both multi-stage tension bead and tension ring
Winding tension: adjusting the packing angle of the over-feeding roller of the yarn
Operation mode: double side and double layer yarn insertion
Starting mode: soft start

• The RF310G two for one twister for filament fibers features a reasonable height to make operation easy.
• The transmission system is simple, making maintenance easy.
• The craft parameters can be set directly on the touch screen in order to improve production efficiency.
• The PLC program effectively avoids yarn ribboning, thus improving the unwinding efficiency in the following process.
• This twisting machine is equipped with an electronic driving system and power off protecting system to allow for normal operations and avoid any problems caused by a sudden loss of power.
• This machine uses both multi-stage tension bead and tension ring, and operators can freely choose between the two.
